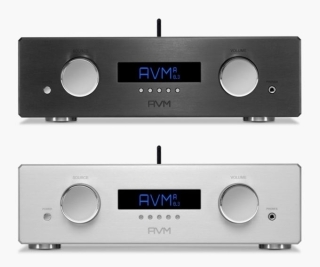

Der A 6.3 auf einen Blick
Erlesene OVATION Transistor-Technologie
2 x 200 W [8Ω] / 2 x 330 W [4Ω]
Class A/AB high current MOS-FET technology adopted from the OVATION SA 6.3 Stereo Amplifier
20 MOS-FET transistors per channel deliver 180 Ampere max.
Power amp supply with 1000 VA torodial transformer
4 separate power supplies: mains, processor unit, Silent power supply for für input circuit left & right
Consistent dual-mono design eliminates avoids mutual interferences between channels
Analog & true balanced input stages, fully DC-coupled
2 Variable pre-stage outputs (XLR & RCA/Cinch), 1 Fix Line Out (RCA/Cinch)
Speakers A/B (separately switchable) with ultra stable loudspeaker terminals
5 High Level Inputs: 1 x XLR Balanced + 4 x RCA Unbalanced
5 Digital Inputs: 1 x RCA Coax, 2 x TOSLINK Opto, 1 x USB with up to 384kHz/32bit & DSD128 (via USB)
Bluetooth 4.2
Signal-sensitive inputs switches on A 8.3 / A 6.3 with incoming signal (1 x Analog RCA, 1 x Digital Coax, 1 x Digital Opto)
Prepared for optional ARC Module
Home Theater / AV Bypass
2 x Trigger Out (10V)
Tone control incl. parametric loudness & bypass function
Separate Class-A headphone amplifier with 6,3 mm jack
Connector for external IR receiver
Large, blue luminescent graphic display
Comprehensive menu functions (adjustable input sensitivity, individual input naming and much more)
Includes full aluminium RC 3 remote control
22 kg, Delivered in rugged AVM OVATION flight case
Technische Daten:
Analogeingänge: 1 x XLR, 4 x Cinch
Digitaleingänge: 2 x S/PDIF Coax, 2 x S/PDIF Optisch, 1 x USB B
Analogausgänge: 1 x Line/Fix Out XLR, 1 x Line/Fix Out Cinch, 1 x Pre/Var Out Cinch
Ausgangsleistung: 2 x 330 W [4Ω]
Kopfhörerausgang: Class-A 6,35 mm
Lautsprecherausgänge: 2 Paar
DSD: DSD128 (5,6 MHz) via USB B
Eingänge: Analog Cinch, Analog XLR, Digital Coax, Digital Optisch, USB B
Ausgänge: Analog Cinch, Analog XLR, Kopfhörer, Lautsprecher, Line/Fix Out, Pre/Var Out
Klangregelung: Balance, Bass, Treble, Contour (Loudness)
Trigger-Ausgänge: 2 x 3,5 mm
Röhrenstufe: A 8.3: OVATION 803 T
Bluetooth: HiFi Bluetooth (4.2 Standard)
Power Consumption: 1500 W max /
Mitgelieferte Fernbedienung: RC 3 Aluminium-Fernbedienung
Optionale Fernbedienungen: RC 8 Fernbedienung
Finish: Aluminium Silber, Aluminium Schwarz
Produktmaße: 355 x 430 x 130 mm (T x B x H)
Produktgewicht: 22 kg
Produktlinie: OVATION
