Unbenutzte Neuware vom Fachhändler
Apollon Audio PNC1200 Premium Stereo Amplifier
Hypex NC1200 based amplifier
Powerful • Musical • Detailed
Leistung:
1200Watt an 2 Ohm
700 Watt an 4 Ohm
400 Watt an 8 Ohm
Dieser Artikel befindet sich in folgender Konfiguration am Lager.
- Hypex SMPS1200A700 (2 pcs.)
- Apollon Audio PET Input Buffer Board with Weiss OP2-BP op amps
- Linear Power supply
- Hypex NC1200 NCORE amplifier (2 pcs.)
- Apollon Control Board für die Standby-Steuerung
- Neutrik versilberte XLR Line-Eingangsbuchse (2 Stk.)
- Vergoldeter RCA-Eingang mit Wahlschalter
- WBT 0703 AG Anschlussklemmen (4 Stück)
- Neotech UP-OCC 12AWG Solid Copper und
- 12V Trigger zum Aufwecken aus dem Standby
- Hochwertige Furutech FI-06 Netzeingangsbuchse
- schwarz Hochglanz Aluminium-Gehäuse mit schwarz vibrationsdämpfenden Aluminium-Füßen
- Dimmbare Front LED
Vorteile:
- Crystal-Clear Sound: Discover breathtaking clarity and precision in your audio, revealing every detail of your favorite tracks and movies.
- Dual Mono Design: The Apollon Audio PNC1200 Premium dual mono configuration ensures independent power supplies for left and right channels, minimising crosstalk for a wider soundstage
- High Power Output: With 700 watts per channel, the Apollon Hypex PNC1200 Premium amplifier delivers a potent punch that effortlessly drives even the most demanding speakers.
- Energy Efficient: Enjoy powerful performance without sacrificing energy efficiency, reducing your carbon footprint and energy bills.
- Studio-Grade Performance: Experience the same audio fidelity used by professionals in recording studios and concert halls.
POWERFUL AND PRECISE
Apollon Audio PNC1200 Dual Mono Amplifiers are built around the award winning Hypex NCore NC1200 amplifier module. Delivering plenty of power and amazing detail for the most demanding studio or audiophile speakers with amazing clarity and brutaly honest linear sound.
SPACIOUS, AIRY SOUND, ABUNDANT IN VIVID DETAIL WITH OUR CUSTOM INPUT BUFFER BOARD WITH WEISS OP2-BP
The Apollon Audio PNC1200 Dual Mono Amplifier is exceptionally fast, uncommonly clean, and exceedingly musical with articulated, deep, tight, and powerful bass. This is how the amplifier can be described in one sentence and we have accomplished that with using a linear power supply to power the highly acclaimed Weiss OP2-BP Op Amp that is incorporated on our custom input buffer board.
Benefits of the Hypex PNC1200 based Apollon Audio PNC1200 Premium Dual Mono Amplifier:
Ultra Low Distortion
The Apollon Audio PNC1200 Premium dual mono amplifier delivers exceptional performance with its ultra low distortion (THD+N – 0.0005 %) as a result of the Hypex NC1200 amplifier module combined with our custom input buffer boards.
Weiss OP2-BP Combined with a Linear Power Supply
Linear Power Supply Custom designed linear power supply that provides power to the Op amp and modulator stage.
Providing low ripple and ultra low noise power to the Weiss OP2-BP Op Amps is possible with our custom designed linear power supply with large Nichicon capacitors and Discrete Voltage Regulators that play a key role for ultra low noise and fast transient responses on our custom input buffer boards for the Purifi 1ET7040SA based amplifier. They are responsible for improved low level listening ability, far superior 3D soundstage and high frequency details. The difference is mostly noticeable at higher volumes, where the clarity remains on higher levels and with ample details and dynamics even at low listening levels.

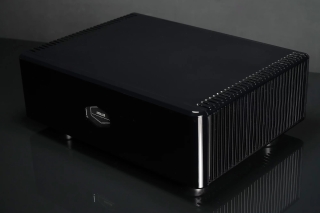

Exceptional Chassis Design
The chassis is custom machined from solid aluminium. 10mm thick walls and 8mm thick lid and bottom. For improved aesthetics we have designed the chassis in such a way that there are no screws visible when you look at the amplifier as they are only on the bottom plate. The aluminium feet provide isolation and absorption from the ground plane.
The chassis is executed in a very tasteful piano black color (available in pearl white, silver metallic and custom colours). It is spray painted rather than anodised since paint is a softer, more absorbent material. We also offer it in anodised finish if the client wishes.
A very special feature is the backlit glass plate with the engraved Apollon mark and the large heatsink that absorbs the heat from the NC1200 module and helps with keeping the amplifier module running on normal operating temperature even under high loads.
Leistung:
- 950Watt an 2 Ohm
- 500 Watt an 4 Ohm
- 250 Watt an 8 Ohm
Technische Daten
- Frequenzgang: 0 - 50k Hz +0/-3dB
- Geringe Verzerrung: THD+N - - 0,0005 % 20Hz-20kHz
- Hohe Eingangsimpedanz 100K
- Signal-Rauschabstand: 137dB
- Verstärkung (dB) 12,8/20,5/27,5/29
- Ultrahoher Dämpfungsfaktor
- Hochstromausgang Max 40A
- Nennleistung: 1200W @ 2ohm | 700W @ 4ohm | 400W @ 8ohm
- Gehäuse Abmessungen: 350mm Tiefe x 156mm Höhe (mit Füßen) x 450 mm Breite
- Gewicht: 19kg
