B-Ware im sehr guten Zustand vom autorisierten Fachhändler.
Unverbindliche Preisempfehlung war: 1.099,- €
Auslaufmodell
Produktbeschreibung:

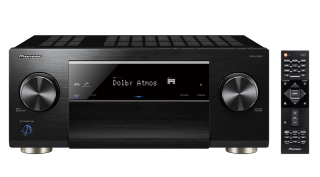

Der VSX-LX503 liefert die Synergie von Dolby Atmos®/DTS:X, perfekt kalibriert durch MCACC und die neuesten Videostandards Ultra HD/HDR10/HLG/Dolby Vision™ und lässt sich sogar mit externem Verstärker auf ein 7.2.4-Kanal-Surround-System erweitern. FlareConnect™ bietet Wireless-Multiroom-Audio, dass mit der Pioneer Remote App einfach zu bedienen ist. Darüber hinaus können Internetradio und Streamingdienste mit Chromecast build-in und DTS Play-Fi® über Ihr Smartphone gesteuert werden. Durch die Powered Zone 3 werden mehrere Heimkino-Optionen unterstützt.
Technische Daten:
Dimensions (W x H x D): 435 x 185 x 386 mm
Weight: 13 kg
Front Terminals
HDMI 1 In
USB 1 In for USB Drive
MCACC Setup MIC In
Phones 1 Out (Gold-Plated)
Rear Terminals
HDMI 6 In (4 Assignable)
HDMI 2 Out (1 for MAIN, 1 for ZONE 2/SUB)
Ethernet 1 In
USB 1 In for USB Drive
AV (Component) 1 In (Assignable)
AV (Composite) 2 In (Assignable)
Audio 1 In (Assignable)
Phono (MM) 1 In
Digital Coaxial 1 In (Assignable)
Digital Optical 2 In (Assignable)
FRONT, CENTER, SURROUND, HEIGHT 1, SURROUND BACK, SUBWOOFER x 2 Pre Out
ZONE 2, ZONE 3/HEIGHT 2 Pre/Line Out
Speaker 11 ch Out (FRONT, CENTER, SURROUND, HEIGHT 1/Bi-AMP, SURROUND BACK/HEIGHT 2/ZON E 3, ZONE 2)
IR 1 In/1 Out
12 V Trigger 2 Out
RS-232C
FM/AM Antenna
Powered Zone 3 / Zone2
Dual Band (5 GHz/2.4 GHz) Wi-Fi® Built-in
Bluetooth® Wireless Technology (Version: 4.1 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
Pioneer Remote App Ready for Multi-room Entertainment Control and Network Streaming
User-Friendly GUI with System/Network Setup Menu
PC Setup
Auto Power Off in HDMI Standby Through
AM/FM Tuner 40 Presets
Sleep Timer
User-Friendly Simple Remote Control
Multi Zone Music
FlareConnect™ for Multi-room Audio
Chromecast built-in
Works with the Google Assistant
DTS Play-Fi with Pioneer Music Control App
Apple AirPlay Certified
Amazon Music, Spotify, TIDAL, and Deezer Music-Streaming
Services Ready
Internet Radio with TuneIn
Hi-Res Audio File Playback via USB/Network
• Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD
• Dolby® TrueHD
Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit,4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
HDR10, HLG and BT.2020 Wide Colour Gamut Signal Passthrough
Dolby Vision Compatible
Ultra HD Upscaling (1080p to 4K)
3D Ready (Blu-ray Disc™, Broadcast, and Games)
Deep Colour (36-bit), “x.v.Colour”
Channels: 9
Amplification Type: Direct Energy
180 W/ch (6 ohms, 1 kHz, THD 1 %, 1ch Driven)
Dolby Atmos®, Dolby Surround Upmixer supports DTS Formats
DTS:X®, DTS Neural:X® Upmixer supports Dolby Formats
Reflex Optimizer
Dolby® TrueHD, Dolby Digital Plus
DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
DSD Direct Playback via Network/USB (11.2, 5.6, 2.8 MHz/2 ch)
DSD Disc (SACD) Playback via HDMI (5.6, 2.8 MHz/2 ch, 2.8 MHz/5.1 ch)
Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus™ Floating-Point DSP (TI)
384 kHz/32-bit D/A Conversion with AK4458 (AKM) & PCM5101 (TI)
Audio Return Channel (ARC) on HDMI
MCACC Auto Room Tuning
• Phase Control
• Subwoofer EQ
• Multi-point Standing Wave Control
Advanced Sound Retriever (2ch)
Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance
