Ungeöffnete Neuware vom Fachhändler!

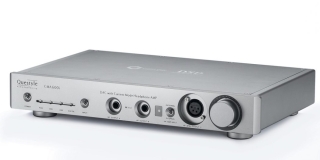

High End Kopfhörerverstärker und DAC
Auch als Vorverstärker hervorragend geeignet.
Durch seine patentierte Current Mode Amplification Signalverstärkung zur Reduzierung von Intermodulationsverzerrungen erreicht diese Preamp eine ungeahnte Musikdarbietung voller Spannung und Details. Musik pur! Eigentlich viel zu günstig!
Chassis
Finish Silver /Space Grey
Chassis Materials special CNC tooled Aluminum
Dimension 12.99”(330mm)[W]×11.81”(300mm)[D]×1.38”(55mm)[H]
Weight 113oz (3.2kg)
Headphone Amplification section
Gain 13.4dB (4.7 times)
Max output 220mW @300ohm , 950mW @32ohm (single-ended)
630mW @300ohm, 1900mW@32ohm (balanced )
THD+N 0.00057% @1kHz, Po=100mW, 300ohm ; 0.00034%@1kHz, Po=50mW, 32ohm
SNR 113dB
Frequency Response DC-100kHz (+0,-0.7dB) ;DC-600kHz (+0,-3dB)
Sensitivity 1.7Vrms
Input Internal DAC output or external RCA, switchable
Output Dual 6.35mm headphone jack, 1 x4-pin Balanced output
Working Status Pure Class A
Voltage 100-120V or 220-230V, switchable
Power Consumption 18W
DAC and Pre-amp section
Supporting files SPDIF and Optical PCM 44.1k-192k /16-24bit
USB PCM44.1k—384k/16-32bit, True DSD64, DSD128, DSD256, DoP64, DoP128
Supporting OS Win XP, Vista, Win 7, Win8, Win 10 and Mac OS
Digital input SPDIF, Optical, USB type B
Kernel Streaming WASAPI, ASIO, KS
Digital Filter PCM mode, IIR (MP) and FIR (LP) switchable; DSD mode: no filter
Output XLR and RCA
Max amplitude XLR : 8.6Vrms; RCA: 4.3Vrms
Analog output THD+N: RCA <0.00082%, XLR <0.00064%
SNR: RCA >105dB, XLR>121dB
